VasuSurgicals

OT.TABLES

PSI LEGEND GS MOTORIZED OPERATION TABLE

PSI Legend GS Motorized Operation Table is a time-tested, electromechanical surgical table designed for versatility and long-term reliability across all surgical disciplines. Engineered with a German-made self-lubricating lifting column, it offers smooth, maintenance-free operation and exceptional C-arm compatibility due to its slim profile. The table features dual control units and an optional manual override system for uninterrupted functionality during emergencies. Its modular design supports a wide range of PSI positioning accessories, making it adaptable for general surgery, orthopedics, and pediatric procedures. With a weight-bearing capacity of 400 kg (distributed) and 250 kg with top-slide engaged, the Legend GS ensures stability, precision, and comfort for both patients and surgical staff.

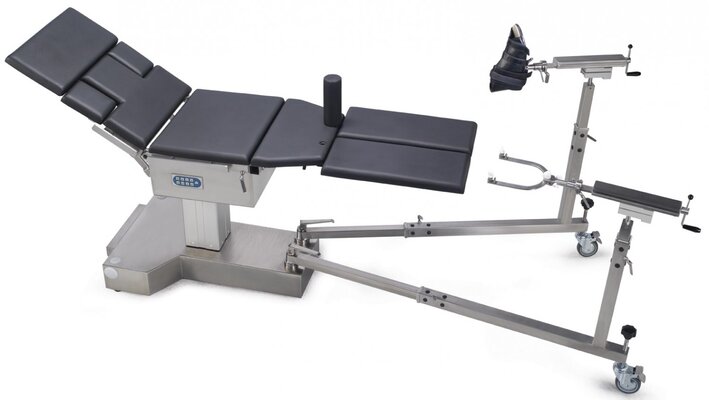

PSI LEGEND BT MOTORIZED ORTHO TABLE

PSI Legend BT Motorized Ortho Table is a specialized surgical platform designed for orthopedic procedures requiring precision, stability, and flexibility. Built with a robust electro-mechanical system, it features a self-lubricating lifting column engineered in Europe for virtually maintenance-free operation. The table’s slim profile ensures optimal C-arm compatibility and maximum angled imaging during complex surgeries. With modular components and compatibility with PSI’s full range of positioning accessories, the Legend BT adapts seamlessly to various orthopedic disciplines. Its motorized articulation, ergonomic design, and high load-bearing capacity make it a trusted choice for hospitals and surgical centers focused on orthopedic excellence

PSI LEGEND TT MOTORIZED ORTHO TABLE

PSI Legend TT Motorized Ortho Table is a specialized surgical platform engineered for advanced orthopedic procedures requiring precision, stability, and imaging compatibility. Featuring a European-made self-lubricating lifting column, it ensures virtually maintenance-free operation and long-term reliability. The table’s slim profile allows maximum angled imaging, making it ideal for C-arm integration during complex surgeries. With motorized articulation and modular design, it adapts seamlessly to various orthopedic disciplines and supports a wide range of PSI positioning accessories. Its ergonomic build and robust electro-mechanical system make it a trusted choice for hospitals seeking performance, flexibility, and cost-effective ownership.

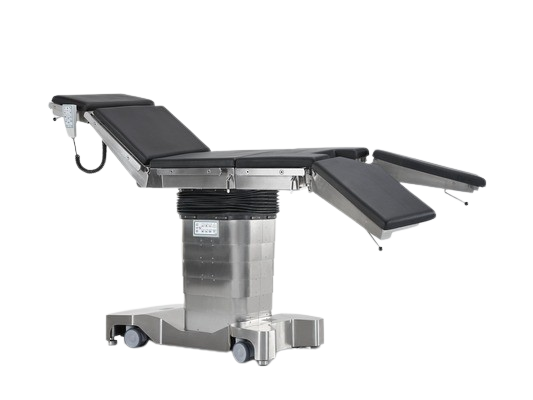

PSI MAXIMUS V1 ELECTRO HYDRAULIC TABLE

Maximus V1 is a multi-discipline, world-class electro-hydraulic operating table designed to provide optimal access to the surgical site while ensuring comfort for both surgical staff and patients. Engineered with German-made precision hydraulics, it enables fine maneuvering and extreme positioning with exceptional stability and control. The table supports a wide range of patient sizes and weights, with a load capacity of 400 kg in distributed mode and 250 kg with the top-slide engaged. Equipped with dual control units and an optional failsafe manual override system, Maximus V1 ensures uninterrupted operation during emergencies through foot pedal-controlled articulations. Its robust design and advanced features make it a reliable choice for modern surgical environments.

PSI MAXIMUS V2 ELECTRO HYDRAULIC TABLE

Maximus V2 Electro-Hydraulic Operating Table is engineered for reliability and uninterrupted performance in demanding surgical environments. Its powerful hydraulic system is electrically operated with built-in battery backup, ensuring continuous operation even during power outages. The table features a unique triple-mode control system—hand controls, column controls, and foot-operated manual overrides—allowing full manual control when needed. With a weight-bearing capacity of 200 kg and a lift capacity of up to 300 kg under normal loading, it accommodates a wide range of patient profiles. Designed to promote good posture and reduce surgeon fatigue, the V2 offers excellent access and articulation. Its modular design is compatible with nearly all PSI positioning accessories, making it adaptable across surgical disciplines while minimizing upgrade and ownership costs.

PSI MAXIMUS BARIATRIC TABLE

PSI Maximus Bariatric Table is a specialized electro-hydraulic surgical platform engineered to support high-weight patients with safety, precision, and comfort. Designed for bariatric procedures and multi-discipline surgical applications, it features a reinforced structure with a high-capacity lifting column and wide tabletop for enhanced stability. The table offers motorized articulation, dual control units, and optional manual override for uninterrupted operation. With a weight-bearing capacity exceeding 400 kg and compatibility with PSI’s modular accessories, the Maximus Bariatric Table ensures optimal access, ergonomic posture, and seamless integration into advanced surgical workflows.

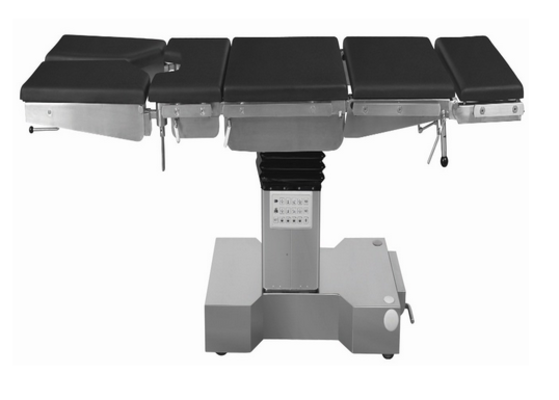

PSI MAGANA LEGEND MOTORIZED OPERATION TABLE

PSI Magna Legend Motorized Operation Table is a versatile, electrically actuated surgical platform designed for universal use across multiple disciplines. Engineered with power-assisted articulation and position memory, it allows smooth patient positioning and one-touch return to level. Its modular design supports orthopedic, neurological, and general surgery setups, with compatibility across most PSI positioning accessories. The table features top and bottom traction systems, an articulating head section, and a 3-pin skull clamp for enhanced surgical access. Built for durability and precision, the Magna Legend ensures ergonomic comfort, seamless control, and reliable performance in demanding operating environments.

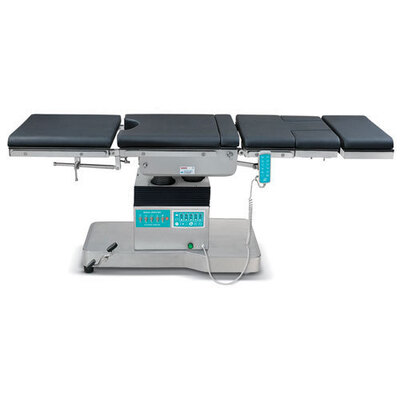

MI- 2006 HYDRAULIC OPERATION TABLE

The "MI-2006 Hydraulic Operation Table" is a surgical table known for its hydraulic operation mechanism, which allows for height adjustments and other positional changes using a foot pedal. It features a stainless steel top and a sturdy, dirt-free base, often with a manual floor locking system. The table is designed to be versatile, supporting various surgical procedures with features like adjustable head and leg sections, and optional orthopedic and neurological attachments.

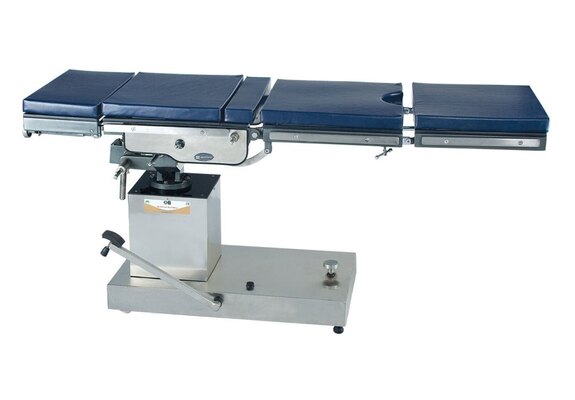

MI-111: GERMATIC C-ARM COMPATIBLE TABLE

The Meditech India Gear Matic C-Arm O.T Table (MI 111) is a versatile surgical table designed for precision and flexibility across orthopaedic, neurology, ERCP, laparoscopy, and urology procedures. Engineered with a slimline column offset for optimal C-arm and surgical access, it supports up to 150 kgs (330 lbs) and features smooth foot-pedal height adjustment (750 mm to 1000 mm). Its robust stainless steel shell ensures a sanitized, dirt-free surface, while interchangeable head and leg sections enhance adaptability. Key movements include height adjustment, Trendelenburg, side tilt, and beach chair positioning. The table offers a kidney elevator (150 mm), lateral tilt (20° each side), back rest (80° up / 25° down), leg rest (15° up / 90° down), and head rest (20° up / 60° down), with a top dimension of L 1980 x W 533 mm—making it a reliable and hygienic choice for modern operation theatres.

MI-101: ELECTROMATIC C-ARM COMPATIBLE TABLE

The Meditech MI 101 Electromagnetic C-Arm O.T Table is a fully electric surgical table tailored for a wide range of procedures including general, vascular, cardio, neurology, urology, gynecology, laparoscopy, and orthopedic surgeries. With a height adjustment range of 750 mm to 1000 mm and a maximum patient load of 200 kgs (440 lbs), it offers precision and stability. The table features Trendelenburg (30°) and reverse Trendelenburg (25°), lateral tilt (20° each side), and adjustable back, leg, and head rests for optimal patient positioning. Crafted from acid-proof stainless steel, its rust-free base ensures hygienic and durable performance. Orthopedic attachments support hips, pelvis, and legs, enabling accurate limb positioning and C-arm compatibility. Remote-controlled movements include flex-reflex, chair position, and section interchangeability. Optional 3-hour battery backup and 24 VDC power supply make it ideal for modern operation theatres.

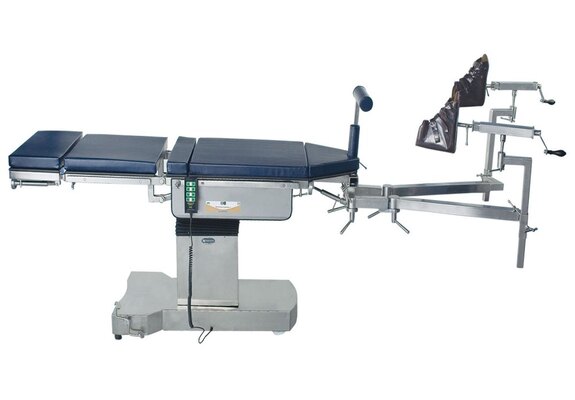

MI-103: ELECTROMATIC TABLE WITH TOP TRACTION UNIT

The MI-101 Electromatic C-Arm Compatible O.T Table is engineered for advanced surgical precision, featuring a top sliding mechanism that enhances intraoperative imaging and accessibility. Designed for general and specialized surgeries—including orthopaedic, vascular, neurology, and laparoscopy—the table offers fully electric controls for seamless adjustments. Its robust stainless steel frame supports up to 200 kgs and includes remote-controlled movements such as Trendelenburg, reverse Trendelenburg, lateral tilt, and chair positioning. The top sliding feature allows effortless alignment with C-arm imaging systems, while interchangeable head and leg sections, orthopedic attachments, and acid-proof surfaces ensure hygiene, flexibility, and surgical efficiency. With optional battery backup and a smooth 24 VDC power supply, the MI-101 delivers reliability and control in demanding operation theatre environments.

ASTRA: 101: ELCTRIC – MANUAL C-ARM COMPATIBLE TABLE

ASTRA 101+ Electric–Manual C-ARM Compatible Table is a versatile operating platform designed for multi-specialty surgical procedures. It features electro-manual drives for noiseless, jerk-free positioning and dual control systems—corded handset and manual override—for uninterrupted operation. The table supports key positions including Trendelenburg, Reverse Trendelenburg, lateral tilt, chair, and flex-reflex, all accessible via LED-backlit remote with symbolic icons. Its radiolucent tabletop is fully compatible with C-ARM and X-ray imaging, with no crossbars to obstruct fluoroscopy. Built with non-corrosive SS 304G stainless steel and a scientifically designed “T”-shaped base, it offers optimal foot room and stability. Additional features include a manually operated kidney elevator, detachable head and leg sections, antistatic castors, and a pedal-operated braking system. With a patient weight capacity of 200 kg and memory presets for quick positioning, ASTRA 101+ ensures precision, safety, and ergonomic comfort in demanding surgical environments.

ASTRA: 103: ELCTRIC – MANUAL C-ARM COMPATIBLE TABLE WITH TOP SLIDING

ASTRA 103+ Electric–Manual C-ARM Compatible Table with Top Sliding is a premium surgical platform designed for multi-specialty procedures including cardiology, orthopedics, neurology, and gynecology. It features electro-manual drives for smooth, noiseless positioning and dual control systems—corded handset and manual override—for uninterrupted operation. The table supports key positions such as Trendelenburg, Reverse Trendelenburg, lateral tilt, chair, and flex-reflex, all accessible via LED-backlit remote with symbolic icons. Its large translucent sliding tabletop (300 mm) enables laparoscopy and C-ARM imaging without patient repositioning. Built from non-corrosive SS 304G stainless steel, it includes detachable head and leg sections, manually operated kidney elevator, and a pedal-operated braking system. With a patient weight capacity of 300 kg and optional battery backup for 3 hours, ASTRA 103+ ensures precision, safety, and ergonomic comfort in demanding surgical environments.
