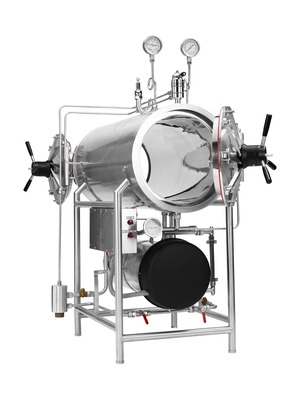

PSI HORIZONTAL HIGH PRESSURE STEAM STERILIZER

PSI HORIZONTAL HIGH PRESSURE STEAM STERILIZER are robust and high-performance sterilization units designed for hospital and laboratory use. Constructed from SS 304 including the supporting stand, with an optional 316L stainless steel chamber for enhanced corrosion resistance. These units feature a double door configuration for barrier applications and offer a Class B option equipped with a vacuum pump for pre- and post-vacuum cycles. Semi-automatic operation ensures ease of use, while ISI certification by the Bureau of Indian Standards confirms safety and compliance for 121°C versions. Available models include PSI Sterilis 5090 (500 × 900 mm, 180 L), 50120 (500 × 1200 mm, 235 L), and 60120 (600 × 1200 mm, 340 L) — each operating at 18 kW electrical power with 3-phase, 40A input. With heating via electrical mode, a working pressure range of 20/30 PSI, and working temperature from 121°C to 134°C, these sterilizers are tested hydraulically at 60 PSI for maximum safety and reliability

PSI RECTRANGLAR STEAM STERILIZR

PSI Sterilis R Horizontal High Pressure Rectangular Steam Sterilizer is a robust and ISI-marked sterilization system designed for hospital and laboratory use. Manufactured in accordance with IS 3829 Part-1 standards (CM/L-640005090), it features a durable SS 304 construction including the stand, with an optional 316L stainless steel chamber for enhanced corrosion resistance. Available in single-door (SD) and double-door (DD) configurations, the system supports Class B sterilization with a vacuum pump and offers semi-automatic operation for ease of use. Operating at 121°C to 134°C with a working pressure of 20/30 PSI and hydraulic test pressure of 60 PSI, it ensures reliable and efficient sterilization. Both models—PSI Sterilis 6060120 SD and DD—feature a spacious 600 × 600 × 1200 mm chamber with a volume of 435 liters, powered by an 18 kW electrical system requiring 40A on a 3-phase supply.

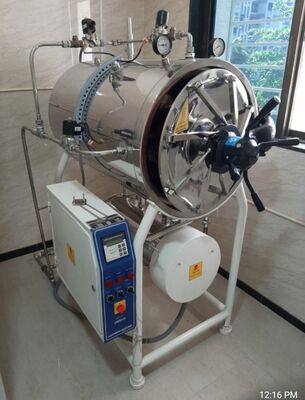

MEDICARE HORIZONTAL STERILIZER

Medicare Horizontal Sterilizer is a high-performance steam-based sterilization system designed for hospitals, surgical centers, and CSSD units. Built with a hydraulically formed end ring and argon arc-welded joints, Uni-point control station for all phases of the sterilizing cycle in smaller size. Provided with safety precautions such as pressure locking door, spring loaded safety valve and dead weight safety valve Loading carriage and trolley as standard accessories for easy transfer of loads Choice of single door, double door and recessed or panel models Various material combination like mild steel, stainless steel 304 / 316 available Steam Trap is incorporated in discharge line for fast and perfect elimination of air Size available from 12 cft. to 325 cft. or higher

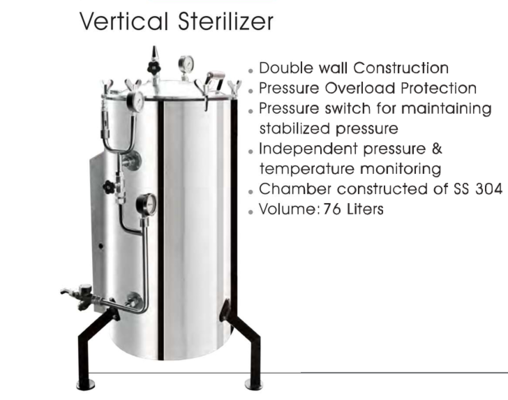

HIGH PRESSURE VERTICAL STERILIZER

The PSI Sterilis 4060 V Vertical Steam Sterilizer is a compact and efficient solution for sterilizing medical instruments in clinics, laboratories, and small hospital setups. Featuring a double-wall construction for enhanced thermal insulation, it includes pressure overload protection and a pressure switch to maintain stabilized internal conditions. Independent pressure and temperature monitoring ensures precise control during sterilization cycles. The chamber is built from durable SS 304 stainless steel with a 76-liter capacity and dimensions of 400 × 600 mm. Operating at 3 kW electrical power on a single-phase 20A supply, it delivers consistent performance at 121°C and 20 PSI working pressure, with a hydraulic test pressure of 40 PSI for safety assurance.

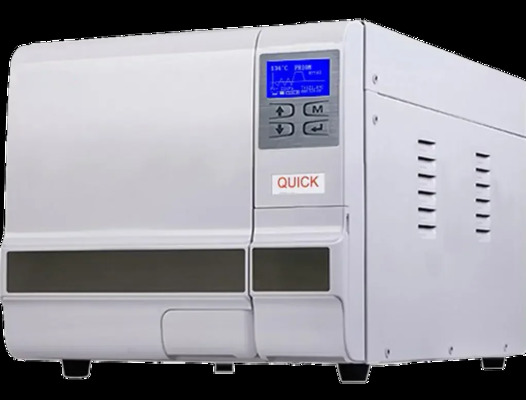

FLASH AUTOCLAVE

FLASH AUTOCLAVE，with QUICK cycle included. It takes approx. completed time 10 to 17 minutes for unwrapped instruments according to different weight of loading. It is a solution for emergency sterilization using, also an idea for ophthalmic clinic. Chamber DimensionØ170x320 mm Chamber Volume8 L Number of TraysStandard 2/ Max. 3 Material of TraysAluminum Trays Size of Trays130x265mm Voltage, Freq.220, 50Hz Power2200 w Overall Dimension (WxHxD)420x370x525 mm Weight37 kgs

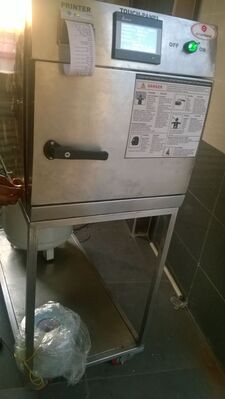

ETO STERILIZER

Automatic cycle progression is feasible in ETO Sterilizer through vacuum, exposure, sterilizing, and aerating phases The control panel screen indicates specific phases in the sterilization process Negative pressure of chamber prevents the gas from entering into operating area Strict control of vacuum, temperature of chamber, exposure (aeration time) etc. for effective performance A leak test function eliminates any leakage possibility in ETO sterilizer Chamber and cabinet made of the finest quality stainless steel Aeration system safeguards the operator from exposure to EO gas The Automation Hardware: PLC (CE approved, CLASS 1 DIV2 Groups ABCD)
